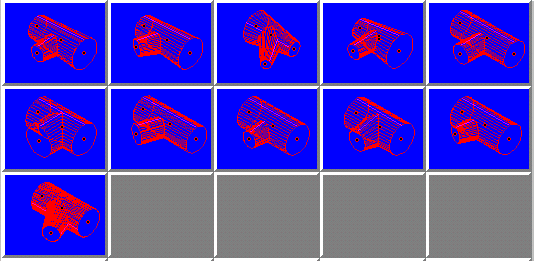

Fig: Parametric Tees - No Offset
The offset tees have more variation with a 3 different matching options. They can be unmatched, edge matched or oblique matched. All these options maintain the offset at the open end face of the tee off. The normal offset tees with matching do no adjust the offset during the match process, but the joining section is proportionally adjusted to achieve a perfect edge match at one of the edges (matching at both edges would require either offset displacement or turning). An oblique (or skew) match achieves the matching at both edges by skewing the part whilst maintaining the offset of the end face of the tee-off.

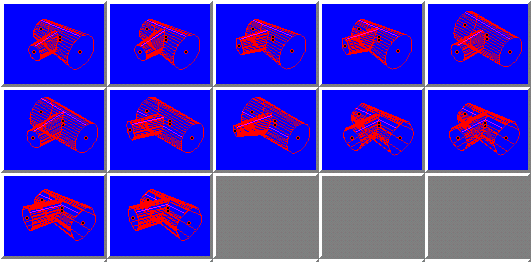

These are the parametric normal offset tees with no matching and edge matching.
