The bends available in the library at the time of release are shown below. One of the designs provides all
the required parameters to provide for a universal bend. This takes the form of two tapered radius
rectangle objects adapting to a radius rectangle of different proportions with oblique skewing in X and Y
directions. By zeroing parameter this design can be reduced to any of the other adapters shown.

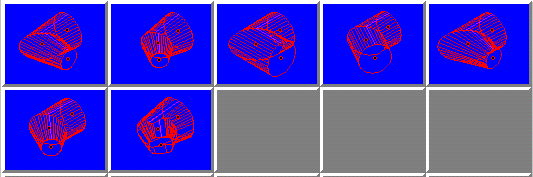

Fig: Library - Universal Bend (Uncut)
Fig: Library - Universal Bend (Cut)
Note: Care must be taken when forming bends between adapting sections because to complete the bend
intersection the dimensions of the section may extend beyond the apex of one of the conical corner
sections, or the triangular sections. This kind of object cannot be manufactured and the bend intersection
will not be complete.
